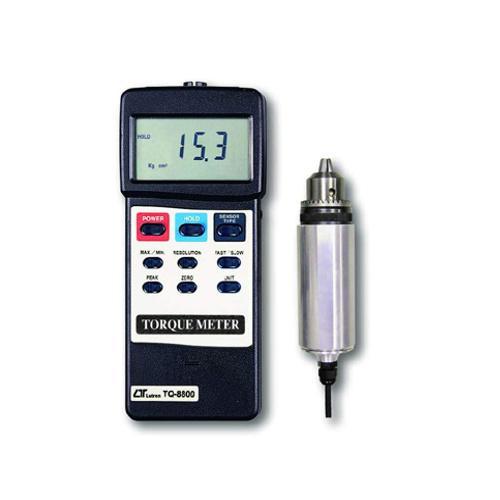

DIGITAL TORQUE METER

DIGITAL TORQUE METER

100.00 - 1000.00 INR/Piece

Product Details:

  • Usage Electronic Industry
  • Weight 100-200 Grams (g)
  • Color Gray
  • Product Type TORQUE METER
  • Length 127 - 152.4 Millimeter (mm)
  • Material Plastic
  • Display Type Digital Only
  • Click to View more
X

DIGITAL TORQUE METER Price And Quantity

  • 100.00 - 1000.00 INR/Piece
  • 1 Piece

DIGITAL TORQUE METER Product Specifications

  • 100-200 Grams (g)
  • Electronic Industry
  • Plastic
  • TORQUE METER
  • 127 - 152.4 Millimeter (mm)
  • Gray
  • Digital Only

DIGITAL TORQUE METER Trade Information

  • Telegraphic Transfer (T/T) Cheque
  • 100 Piece Per Day
  • 2 Week
  • Corrugated Box
  • All India

Product Description

Established in the year 2005, we are a reliable manufacturer and supplier of Digital Torque Meter. These meters are highly useful for measuring torque value, peak hold and data hold. To manufacture the meter we use optimum quality materials and components, sourced from the most authentic vendors. To provide a defect free range to the clients, we check the Digital Torque Meter on accuracy and durability parameters.

Features:

  • Light in weight

  • Accurate measurement

  • Long working life

Features:

  • Professional torque meter with 15 Kg-cm torque probe, full set.
  • 3 kind display unit : Kg-cm, Kg-cm, LB-inch and Newton-cm.
  • Peak value measurement.
  • Data hold.
  • Peak hold measurement .
  • High/Low resolution button.
  • Fast/Low sampling button.
  • Record Max. and Min. readings.
  • RS 232 computer interface.
Specifications:
  • Display: 61 mm x 34 mm supper large LCD
  • display.15 mm ( 0.6" ) digit size.
  • Measurement: Torque value, peak hold, Data hold, Max. & min. value.
  • Display unit: Kg-cm/LB-inch/Newton-cm.
  • Sensor: Exclusive torque sensor.
  • Circuit: Exclusive microcomputer circuit.
  • Data hold: Freeze the desired reading.
  • Peak hold To hold the peak value.
  • Memory: Maximum & Minimum value.
  • Power off: Auto shut off, saves battery life, or manual off by push button.
  • Power supply: Alkaline or heavy duty type DC 9V  battery, 006P, MN1604 (PP3) or equivalent.
  • Power consumption: Approx. DC 20 mA.
  • Weight: Meter 230 g ( 0.50 LB ). Probe 600 g (1.32 LB )
  • Chuck head size: 1/2 to 20 UNF, 1.5 to 13 mm
  • Dimension Meter : 180 x 72 x 32 mm ( 7.1 x 2.8   x1.3 inch ).Torque probe:Round 48 mm Dia. x 160 mm.
